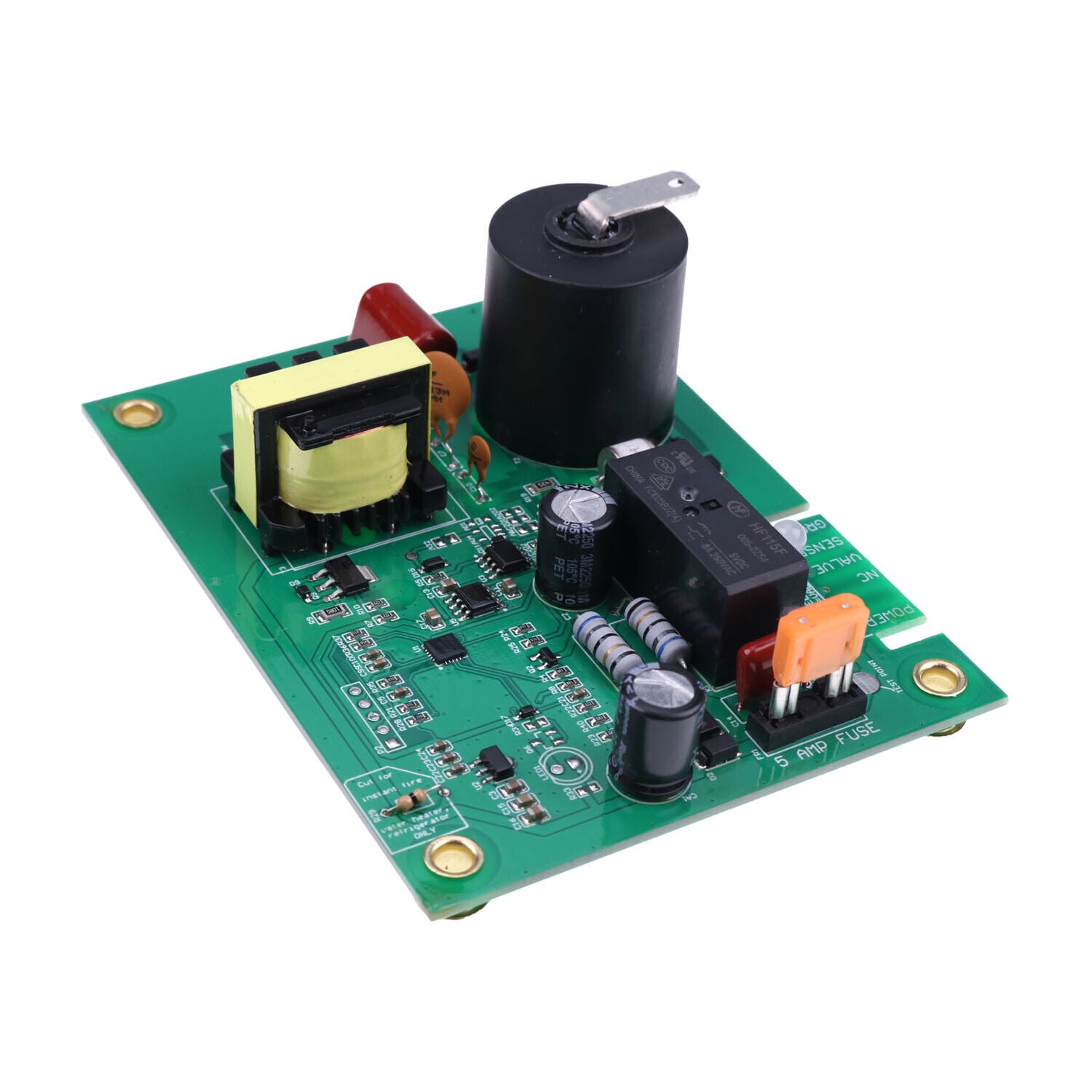

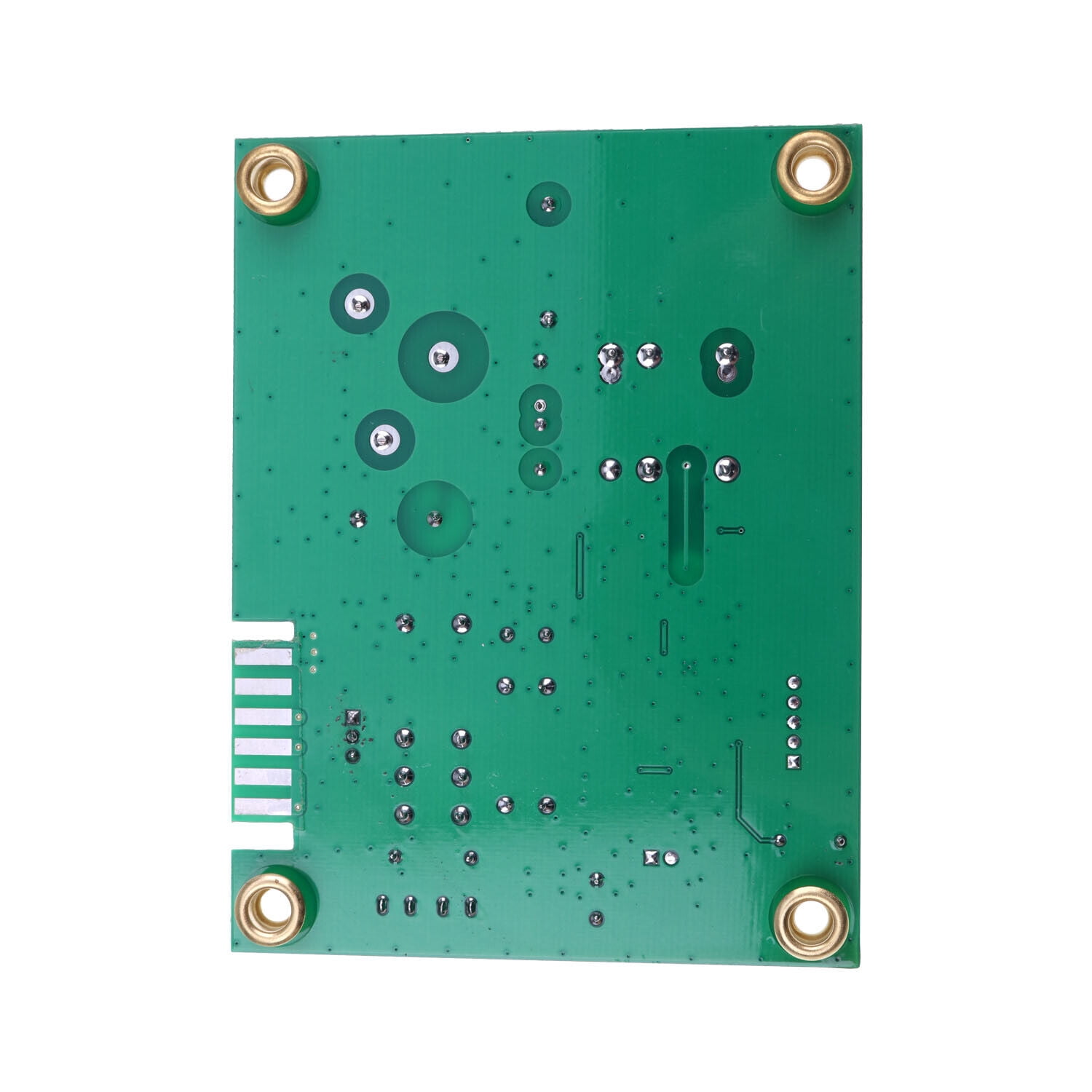

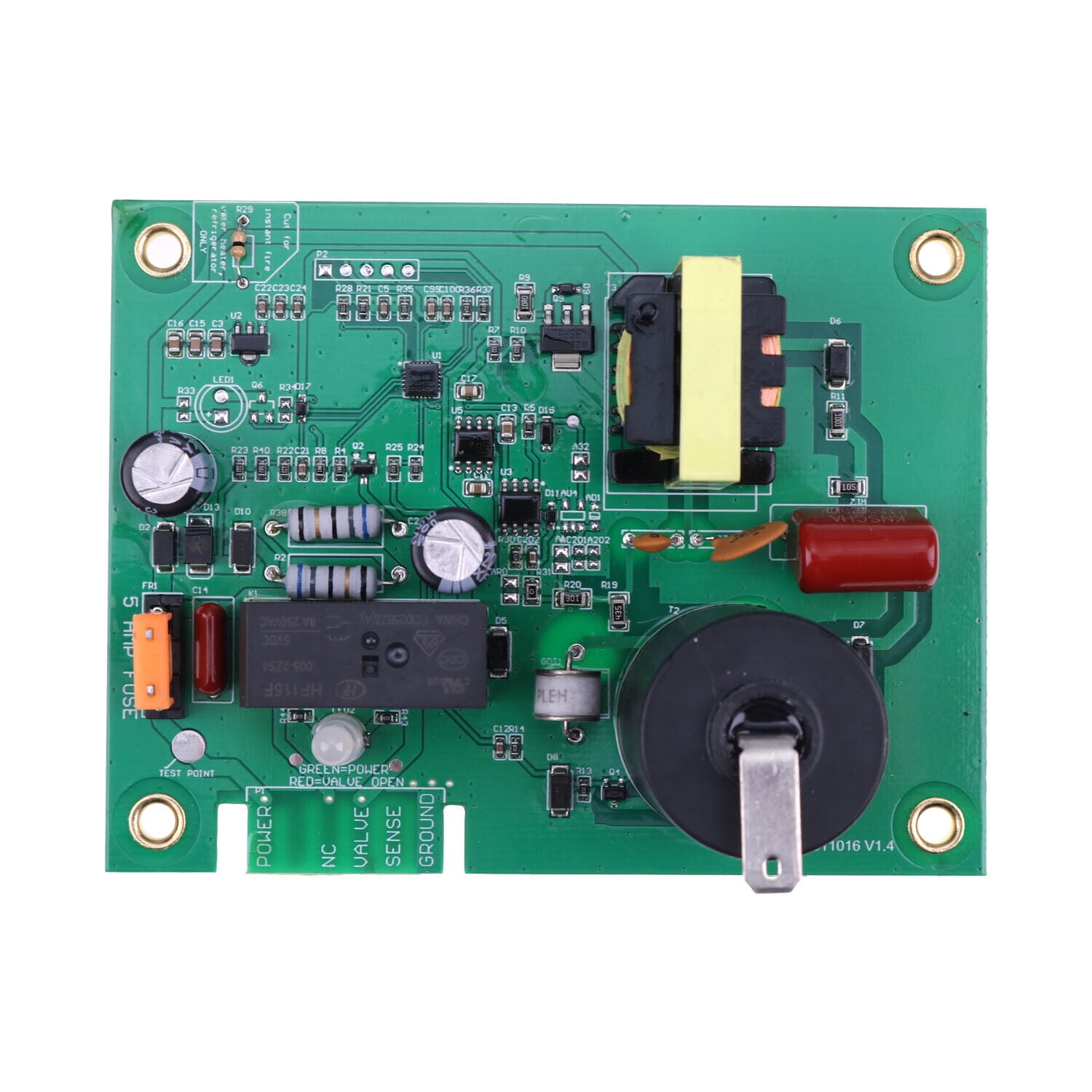

ACA Universal Ignition Control Circuit Board Small 12V UIB S Replacement for Furnaces Refrigerators Water Heaters Ignitor Boards
Product details
| Management number | 231000048 | Release Date | 2026/06/18 | List Price | US$29.60 | Model Number | 231000048 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
These rugged boards use double sided-plated thru hole technology for added reliability. They are fused to protect the board from short circuits in the NC and Valve circuitry.<br> A two color LED monitors the NC and valve terminals to let you know when there is power to the board-"GREEN" and when there is power for the Valve-"RED".<br> These delayed 3-try ignitor boards with 20 Second purge cycles and LOCAL flame sense also incorporate an option jumper. Removal of the jumper, for water heater and refrigerator use only, converts the board to instant fire with one Minute purge cycle between the three ignition tries.
- Universal Ignitor Boards will fit most brands of furnaces, refrigerators and water heaters.
- Dual sense:Flame sense works through high voltage connector and edge connector simultaneously.
- External sense:Connector on the board for external sense wire.
- Small board with spade connector, 12VDC operating voltage. Features 3-try ignition with delay. 4-1/4 Inch Length x 3-1/4 Inch Width. Fuse & surge protected, microcontrolled.
| Brand | ACA |
|---|
